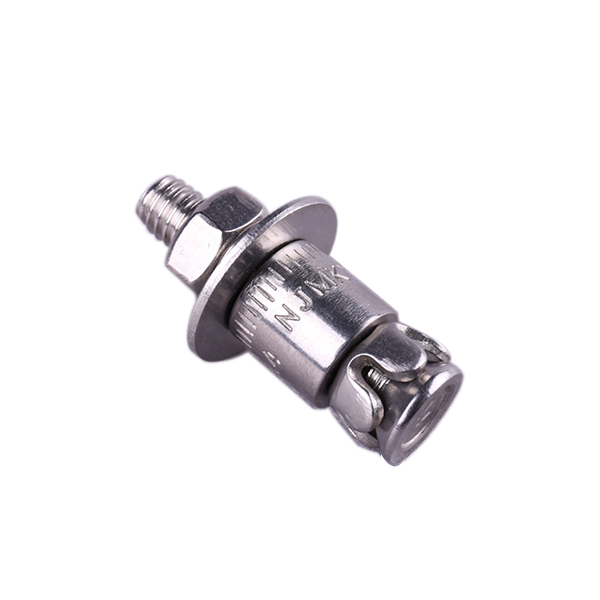

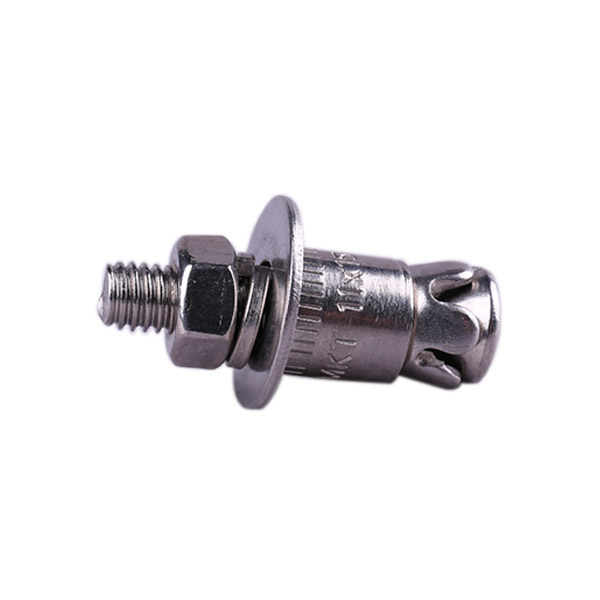

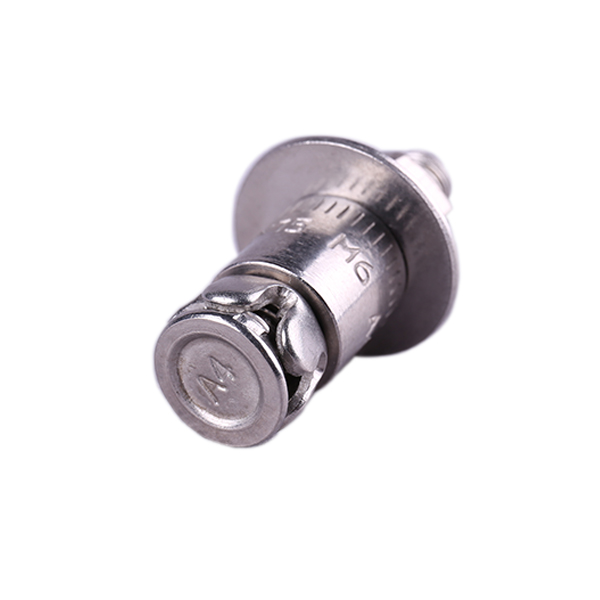

Lotus-shaped Undercut Panel Anchor

Undercut panel anchor plays an important role in service life and safety of curtain wall anchorage. NJMKT undercut panel anchor adopts stainless steel material to meet the required tensile and shear strength; simple structure, convenient operation and installation, no need of any adhesive, can safely and quickly installed in controlled height, and application with reveal angle or other attachment parts.


Compartir

    Key Features

    ● Consist: high strength anchor rod, spacer sleeve, Z-type pressure ring, spring washer, nut

    ● Material: A4 stainless steel, higher ultimate load capacity than ordinary standard, and high corrosion resistance steel A4-70 (316L) can be applied in harsh environment, such as, splashing seawater environment, swimming pools with chlorine, industrial environment with SO2, etc.



    Advantages

    ● Displacement control undercut anchor, convenient and quick installation

    ● Installation process is easy to control, wide construction coverage

    ● Lock-effect anchor fixing, initial installation stress is nearly negligible, low installation stress ensures the protection of panel materials

    ● Closed Z-type ring structure has completely dispersed temperature stress caused by different temperature strain between the stone and anchor, which is the problem of ordinary panel anchor application

    ● Immediate load-carrying capability as soon as it is installed

    The design of internal thread can effectively prevent the pressure ring loose off, increased the safety factor

    ● The check washer and check nut ensure the connection of curtain wall and keep the security and stability in the long-term wind load

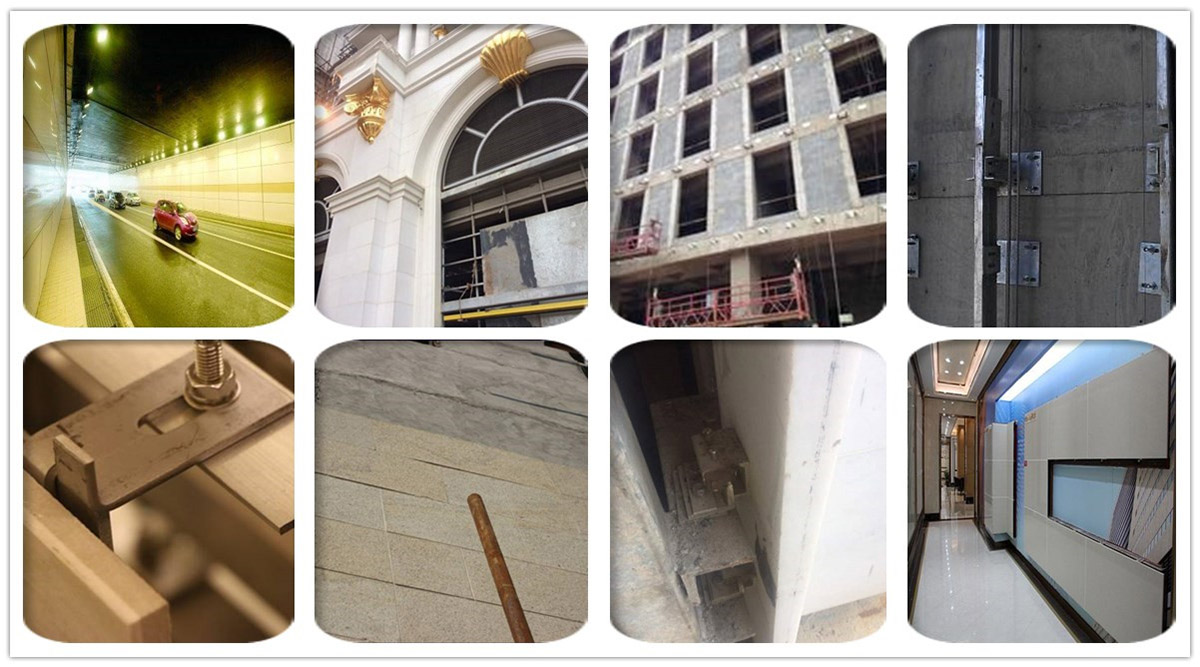

    ● Application: suitable for fixing plate of buildings outside maintenance construction, especially natural stone decoration plate, and also ceramic plate, marble plate, granite, microcrystalline stone, crystal glass, man-made fiber board, etc.

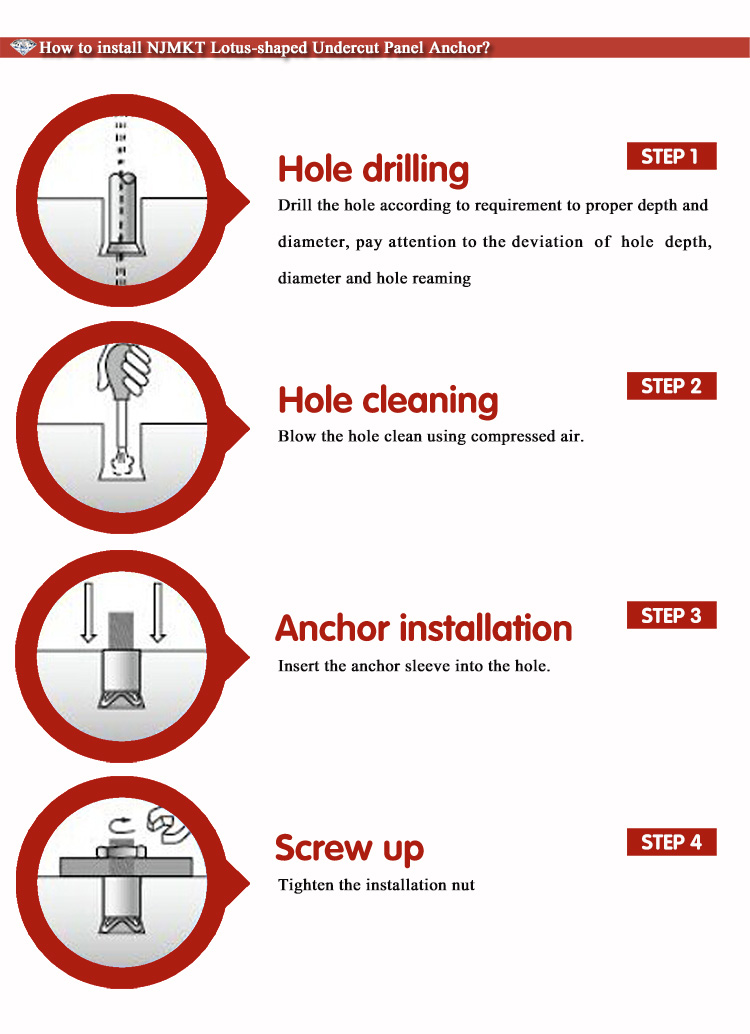

    Installation Guide  (hammer-in undercut panel anchor)



    ● Step 1  Hole drilling: Drill the hole according to requirement to proper depth and diameter, pay attention to the deviation of hole depth, diameter and hole reaming.

    ● Step 2   Hole cleaning: Blow the hole clean using compressed air.

    ● Step 3   Anchor installation: Insert the anchor sleeve into the hole.

    ● Step 4   Screw up: Tighten the installation nut.



    SizeDrilled hole dia.[mm]anchorage depth [mm]Enlarged hole dia.[mm]rod dia.[mm]Outside length of rod [mm]
    M6 × 5 × 2011513.5M615
    M6 × 7 × 2011713.5M613
    M6 × 10 × 25 111013.5M615
    M6 × 12 × 25111213.5M613
    M6 × 15 × 32111513.5M617
    M6 × 18 × 32111813.5M614
    M6 × 21 × 32112113.5M611
    M8 × 15 × 32131515.5M817
    M8 × 18 × 35131815.5M817
    M8 × 21 × 35132115.5M814
    M8 × 25 × 40132515.5M815
    M8 × 30 × 45133015.5M815
    M8 × 35 × 50133515.5M815
    M8 × 40 × 55134015.5M815


    1. A4 stainless steel, higher ultimate load capacity than ordinary standard

    2. Small installation stress ensures the protection of panel materials

    3. The design of internal thread can effectively prevent the pressure ring loose off, increased the safety factor

    4. The check washer and check nut ensure the connection of curtain wall and keep the security and stability in the long-term wind load
